Robotic Welding Transport Assembly

Description

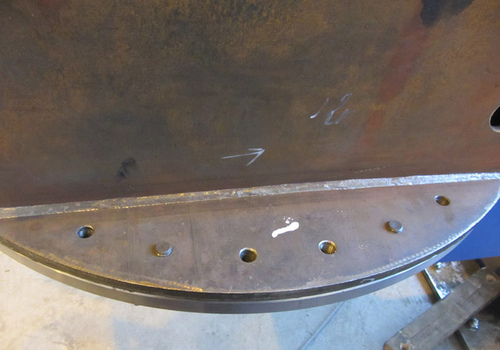

A robotic solution performs welding of truck-mounted hydraulic lift parts in fully automatic mode.

The robot is placed on a linear track to expand the reach zone. The cell includes two different types of positioners.

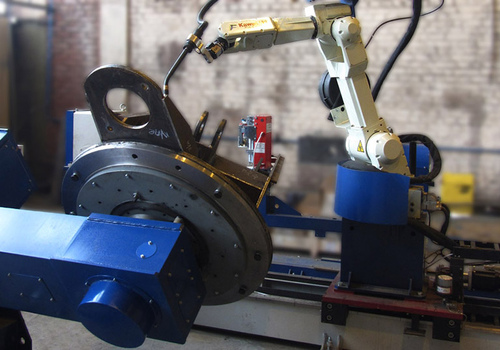

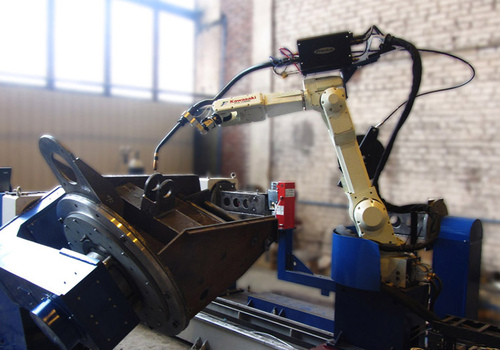

Positioner No. 1 ensures controlled two-axis rotation of products. The L-shaped design of the positioner allows precise movement, including rotating the product by 180°.

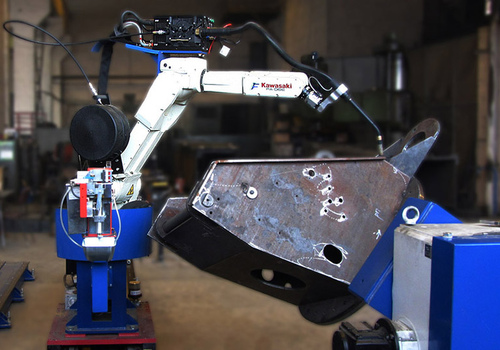

Positioner No. 2 ensures controlled rotation along the horizontal axis. The presence of a reverse support module allows installing products of various lengths.

The operator's work areas are protected by a light barrier and equipped with an external HMI control panel.
