Robotic Welding of Structural Steel

Посмотреть видео

Description

An industrial robotic solution performs automatic welding of large-sized structural products of various sizes.

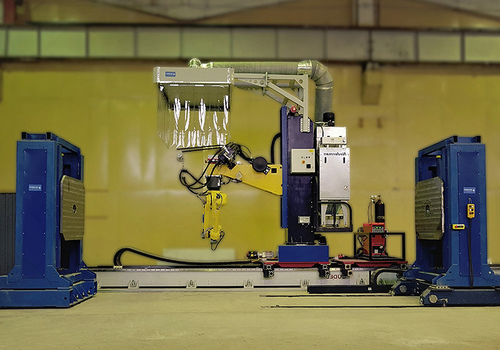

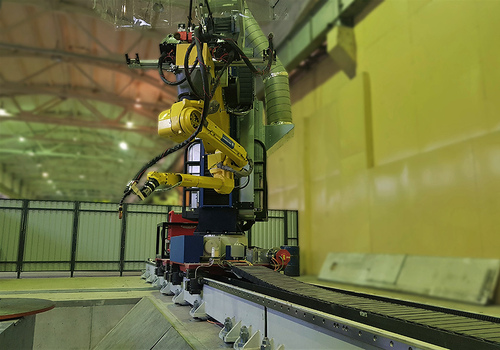

The robot is placed on an L-shaped column with a function of controlled vertical displacement of the robot. The column is placed on a track for linear expansion of the robot's reach.

The complex includes two different types of positioners.

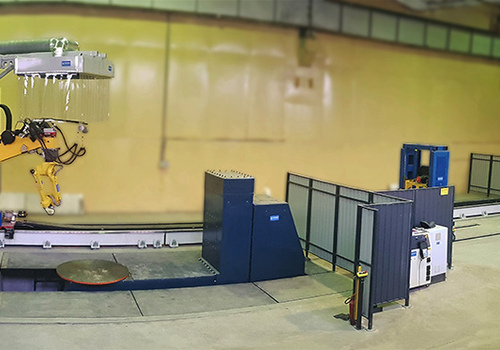

Positioner No. 1 provides controlled rotation of products along the horizontal axis and is equipped with a function of vertical displacement of the axis of rotation of the faceplates.

Positioner No. 2 has an L-shaped design and provides two-axis rotation of products weighing up to 5000 kg.

Overhead welding fume exhaust system to maintain safety air quality standards.
