RWS-W101.02

Description

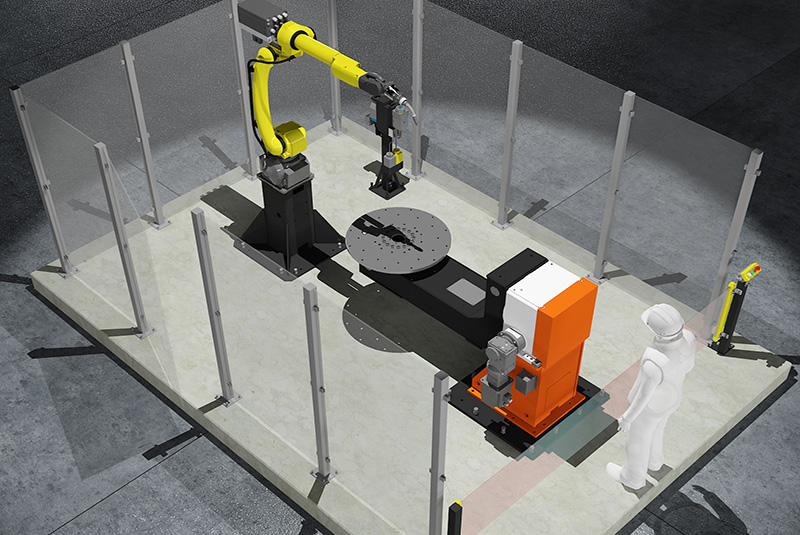

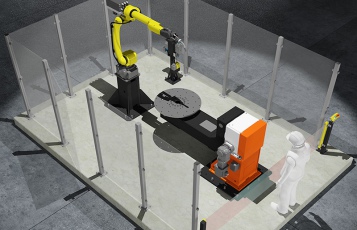

The RWS-W101.02 robotic complex is an effective solution for welding complex products that require rotation during welding along two axes.

The gearbox of each axis of the positioner is driven by the robot's servomotor. This functionality ensures controlled rotation of products during welding along two axes in a single coordinate system of the complex.

Key features of the RWS-W101.02:

· The L-shaped design of the two-axis positioner allows positioning the product in technologically correct positions, including tipping the product by 180°;

· The load capacity of the positioner is available in the range from 750 to 5000 kg;

· Depending on the modification of the positioner, it is possible to install products with a diameter of up to 4 meters;

· The operator's working area is protected by a light barrier and equipped with an external control panel.
