Spot Welding RWC-S101.06

Description

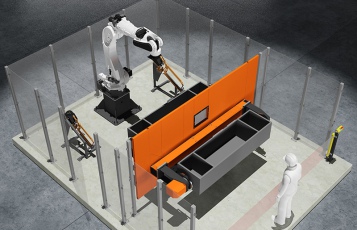

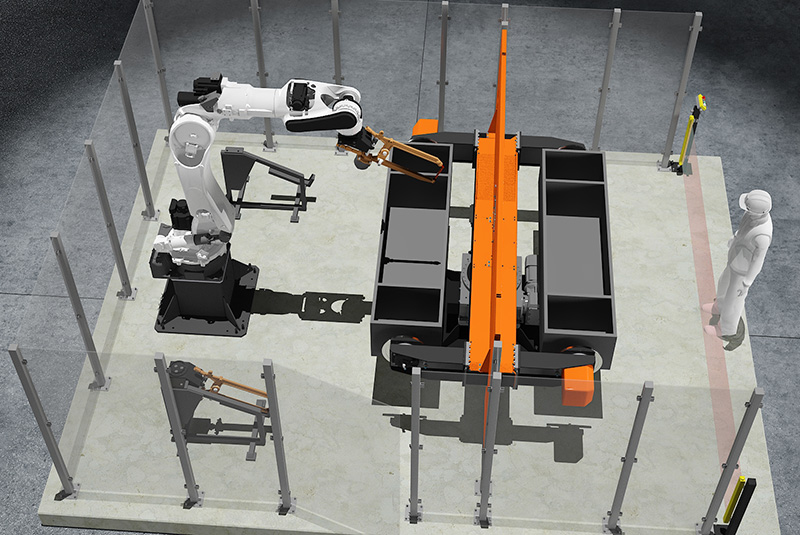

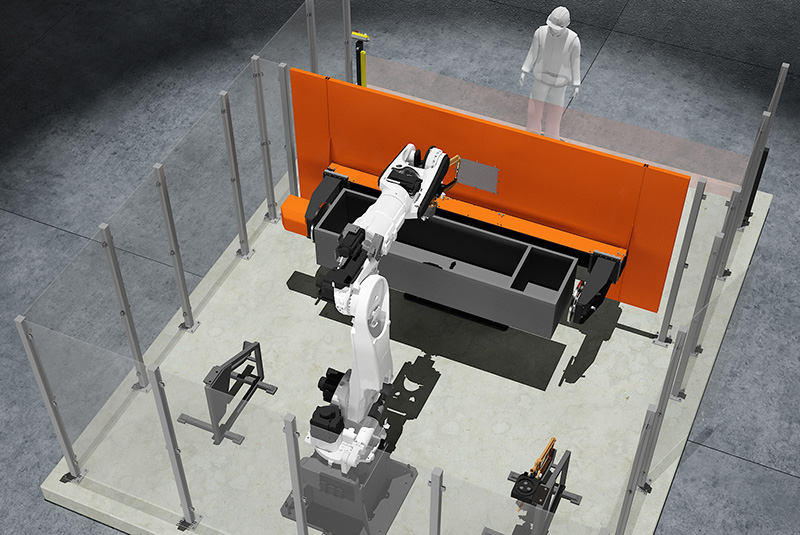

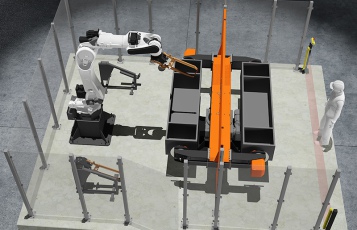

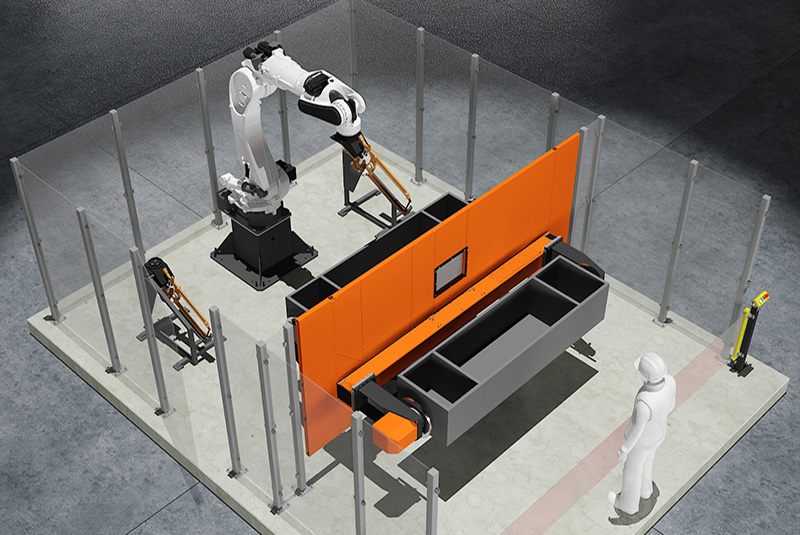

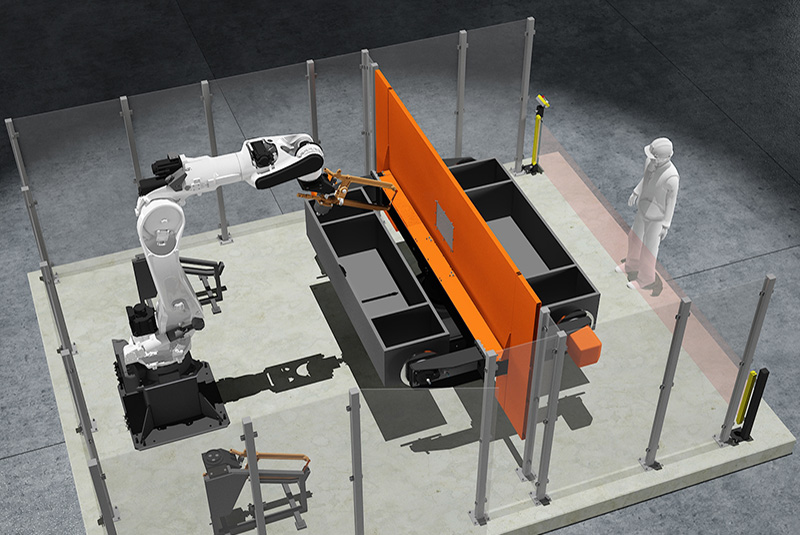

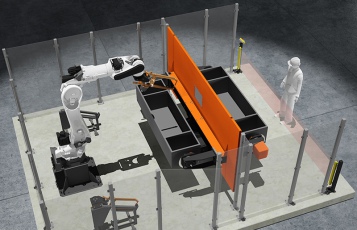

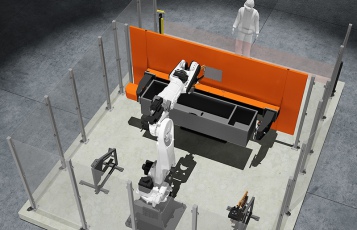

The RWC-S101.06 robotic system is an effective solution for high-performance contact welding. It includes a two-position rotary table, each position of which provides controlled rotation of products in the horizontal axis.

Key features of the RWC-S101.06:

The presence of automatic change of positions of the rotary table ensures almost continuous loading of the robot;

The robot is equipped with X-type welding clamps with a servo drive (optional);

The range of load capacity for each table position is from 250 to 750 kg;

The range of distances between the faceplates of each position is from 1500 to 2500 mm;

The operator's working area is protected by a light barrier and equipped with an external control panel.
