Fanuc Robotics Catalogue

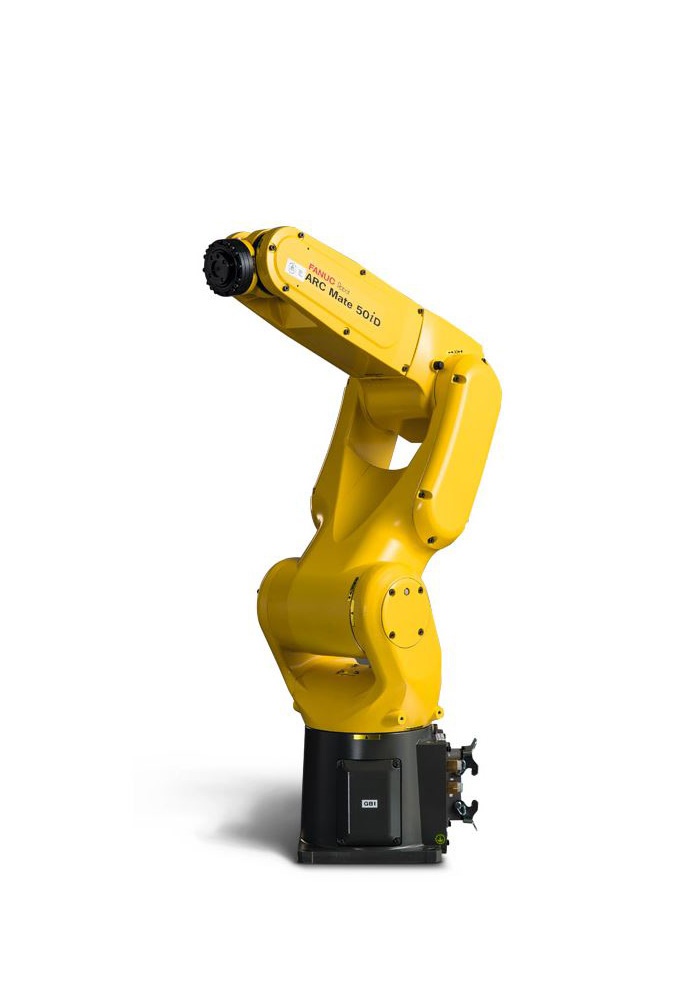

Fanuc ARC Mate 50iD
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
717 mm
6
0.018 mm
Fanuc ARC Mate 50iD/7L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
911 mm
6
0.018 mm
Fanuc ARC Mate 100iD
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
1441 mm
6
0.02 mm
Fanuc ARC Mate 100iD/8L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
8 kg
2032 mm
6
0.03 mm
Fanuc ARC Mate 100iD/10L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
10 kg
1636 mm
6
0.03 mm
Fanuc ARC Mate 120iD/16S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
16 kg
1103 mm
6
0.02 mm
Fanuc ARC Mate 120iD
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
25 kg
1831 mm
6
0.02 mm
Fanuc ARC Mate 120iD/12L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
2272 mm
6
0.03 mm
Fanuc ARC Mate 120iD/35
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
35 kg
1831 mm
6
0.03 mm
Fanuc CR-4iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
4 kg
550 mm
6
0.01 mm
Fanuc CRX-5iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
5 kg
994 mm
6
0.03 mm
Fanuc CR-7iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
717 mm
6
0.01 mm
Fanuc CR-7iA/L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
911 mm
6
0.01 mm
Fanuc CRX-10iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
10 kg
1249 mm
6
0.04 mm
Fanuc CRX-10iA/L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
10 kg
1416 mm
6
0.04 mm
Fanuc CR-14iA/L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
14 kg
911 mm
6
0.01 mm
Fanuc CR-15iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
15 kg
1441 mm
6
0.02 mm
Fanuc CRX-20iA/L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
20 kg
1418 mm
6
0.04 mm
Fanuc CRX-25iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
25 kg
1889 mm
6
0.05 mm
Fanuc CRX-25iA-30
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
30 kg
1756 mm
6
0.05 mm
Fanuc CR-35iB
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
35 kg
1831 mm
6
0.03 mm
Fanuc CR-35iB-50
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
50 kg
1643 mm
6
0.03 mm
Fanuc LR Mate 200iD/4S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
4 kg
550 mm
6
0.01 mm
Fanuc LR Mate 200iD/4SC
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
4 kg
550 mm
6
0.013 mm
Fanuc LR Mate 200iD
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
717 mm
6
0.01 mm
Fanuc LR Mate 200iD/4SH
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
4 kg
550 mm
5
0.013 mm

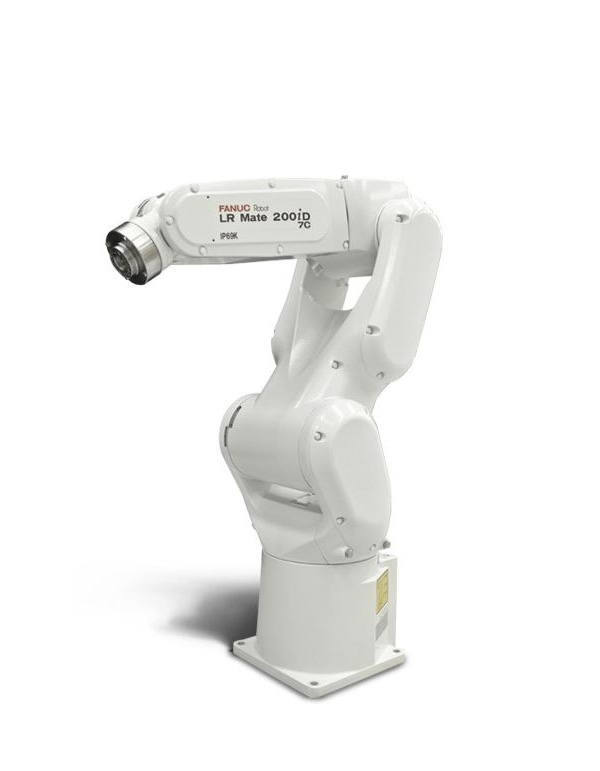

Fanuc LR Mate 200iD/7C
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
717 mm
6
0.018 mm
Fanuc LR Mate 200iD/7H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
717 mm
5
0.018 mm
Fanuc LR Mate 200iD/7L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
911 mm
6
0.01 mm
Fanuc LR Mate 200iD/7LC
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
911 mm
6
0.018 mm
Fanuc LR Mate 200iD/7WP
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
7 kg
717 mm
6
0.018 mm
Fanuc M-10iD/8L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
8 kg
2032 mm
6
0.03 mm
Fanuc M-10iD/10L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
10 kg
1636 mm
6
0.03 mm
Fanuc LR-10iA/10
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
10 kg
1101 mm
6
0.01 mm
Fanuc M-10iD Food Grade
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
1441 mm
6
0.02 mm
Fanuc M-10iD Dust and Moisture Resistance
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
1441 mm
6
0.02 mm
Fanuc M-10iD
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
1441 mm
6
0.02 mm
Fanuc M-20iD/12L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
2272 mm
6
0.03 mm
Fanuc M-710iC/12L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
3123 mm
6
0.09 mm
Fanuc LR Mate 200iD/14L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
14 kg
911 mm
6
0.01 mm
Fanuc M-10iD/16S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
16 kg
1103 mm
6
0.02 mm
Fanuc M-710iC/20L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
20 kg
3110 mm
6
0.06 mm
Fanuc M-710iC/20M
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
20 kg
2582 mm
6
0.06 mm
Fanuc M-20iB/25
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
25 kg
1853 mm
6
0.02 mm
Fanuc M-20iB/25C
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
25 kg
1853 mm
6
0.023 mm
Fanuc M-20iD/25
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
25 kg
1831 mm
6
0.02 mm
Fanuc M-20iD/25 FG
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
25 kg
1831 mm
6
0.02 mm
Fanuc M-20iD/35S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
35 kg
1445 mm
6
0.02 mm
Fanuc M-20iD/35
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
35 kg
1831 mm
6
0.03 mm
Fanuc M-710iC/45M
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
45 kg
2606 mm
6
0.06 mm
Fanuc M-710iD/50M
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
50 kg
2606 mm
6
0.06 mm
Fanuc M-710iC/50
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
50 kg
2050 mm
6
0.03 mm
Fanuc M-710iC/50E
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
50 kg
2050 mm
6
0.07 mm
Fanuc M-710iC/50H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
50 kg
2003 mm
5
0.15 mm
Fanuc M-710iC/50S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
50 kg
1359 mm
6
0.04 mm
Fanuc M-710iC/50T
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
50 kg
1900 mm
6
0.07 mm
Fanuc M-800iC/60
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
60 kg
2040 mm
6
0.015 mm
Fanuc M-710iC/70
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
70 kg
2050 mm
6
0.04 mm
Fanuc M-710iC/70T
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
70 kg
1900 mm
6
0.07 mm
Fanuc R-1000iA/80F
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
80 kg
2230 mm
6
0.03 mm
Fanuc R-1000iA/80H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
80 kg
2230 mm
5
0.03 mm
Fanuc R-2000iC/100P
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
100 kg
3540 mm
6
0.05 mm
Fanuc R-1000iA/100F
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
100 kg
2230 mm
6
0.03 mm
Fanuc R-2000iD/100FH
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
100 kg
2605 mm
6
0.05 mm
Fanuc R-1000iA/120F-7B
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
120 kg
2230 mm
7
0.03 mm
Fanuc R-2000iC/125L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
125 kg
3100 mm
6
0.05 mm
Fanuc R-1000iA/130F
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
130 kg
2230 mm
6
0.03 mm
Fanuc R-2000iC/165F
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
165 kg
2655 mm
6
0.05 mm
Fanuc R-2000iD/165FH
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
165 kg
2605 mm
6
0.05 mm
Fanuc R-2000iC/165R
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
165 kg
3095 mm
6
0.05 mm
Fanuc R-2000iC/190S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
190 kg
2040 mm
6
0.03 mm
Fanuc R-2000iC/210WE
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
210 kg
2450 mm
6
0.1 mm
Fanuc R-2000iC/210L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
210 kg
3100 mm
6
0.05 mm
Fanuc R-2000iC/210F
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
210 kg
2655 mm
6
0.05 mm
Fanuc R-2000iC/210R
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
210 kg
3095 mm
6
0.05 mm
Fanuc R-2000iD/210FH
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
210 kg
2605 mm
6
0.05 mm
Fanuc R-2000iC/220U
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
220 kg
2518 mm
6
0.05 mm
Fanuc R-2000iC/240F
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
240 kg
2655 mm
6
0.05 mm
Fanuc R-2000iC/270R
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
270 kg
3095 mm
6
0.05 mm
Fanuc R-2000iC/270F
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
270 kg
2655 mm
6
0.05 mm
Fanuc M-410iC/110
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
110 kg
2403 mm
4
0.05 mm
Fanuc M-410iB/140H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
140 kg
2850 mm
5
0.2 mm
Fanuc M-410iC/185
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
185 kg
3143 mm
4
0.5 mm
Fanuc M-410iC/315
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
315 kg
3143 mm
4
0.5 mm
Fanuc M-410iC/500
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
500 kg
3143 mm
4
0.5 mm
Fanuc M-410iB/700
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
700 kg
3143 mm
4
0.5 mm
Fanuc M-900iB/280
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
280 kg
2655 mm
6
0.1 mm
Fanuc M-900iB/280L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
280 kg
3103 mm
6
0.1 mm
Fanuc M-900iB/330L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
330 kg
3203 mm
6
0.1 mm
Fanuc M-900iB/360E
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
360 kg
2655 mm
6
0.1 mm
Fanuc M-900iB/400L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
400 kg
3704 mm
6
0.1 mm
Fanuc M-950iA/500
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
500 kg
2830 mm
6
0,08 mm
Fanuc M-900iB/700E
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
700 kg
2832 mm
6
0.1 mm

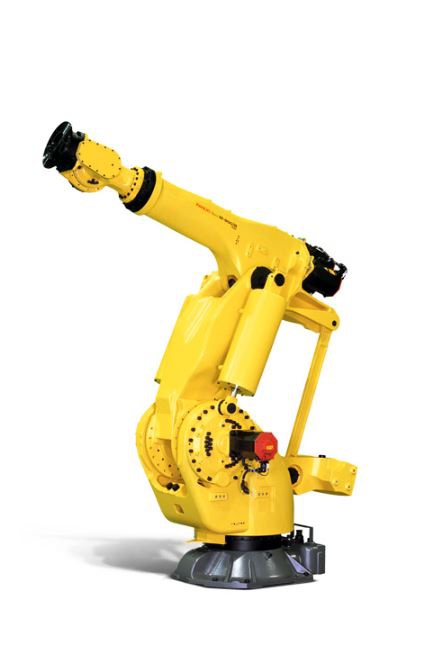

Fanuc M-900iB/700
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
700 kg
2832 mm
6
0.1 mm
Fanuc M-2000iA/900L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
900 kg
4683 mm
6
0.18 mm
Fanuc M-1000iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
1000 kg
3253 mm
6
0.1 mm
Fanuc M-2000iA/1200
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
1200 kg
3734 mm
6
0.18 mm
Fanuc M-2000iA/1700
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
1700 kg
4683 mm
6
0.27 mm

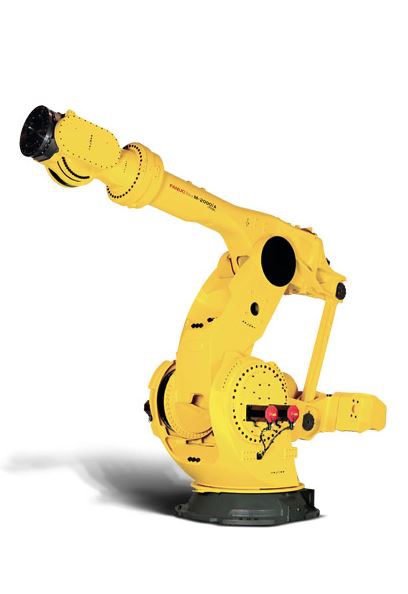

Fanuc M-2000iA/2300
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
2300 kg
3734 mm
6
0.18 mm
Fanuc Delta Robot M-1iA/0.5A
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
0.5 kg
280 mm
6
0.02 mm
Fanuc Delta M-1iA/0.5AL
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
0.5 kg
420 mm
6
0.03 mm
Fanuc Delta M-1iA/0.5S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
0.5 kg
280 mm
4
0.02 mm
Fanuc Delta M-1iA/0.5SL
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
0.5 kg
420 mm
4
0.03 mm
Fanuc Delta M-1iA/1H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
1 kg
280 mm
3
0.02 mm
Fanuc Delta M-1iA/1HL
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
1 kg
420 mm
3
0.03 mm
Fanuc Delta M-2iA/3S
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
3 kg
900 mm
4
0.1 mm
Fanuc Delta M-2iA/3AL
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
3 kg
1130 mm
6
0.1 mm
Fanuc Delta M-2iA/3A
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
3 kg
800 mm
6
0.1 mm
Fanuc Delta M-2iA/3SL
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
3 kg
1130 mm
4
0.1 mm
Fanuc Delta M-2iA/6HL
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
6 kg
1130 mm
3
0.1 mm
Fanuc Delta M-2iA/6H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
6 kg
800 mm
3
0.1 mm
Fanuc M-3iA/6H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
6 kg
1350 mm
4
0.1 mm
Fanuc M-3iA/6A
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
6 kg
1350 mm
6
0.1 mm
Fanuc DR-3iB/6 STAINLESS
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
6 kg
1200 mm
4
0.03 mm
Fanuc Delta DR-3iB/8L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
8 kg
1600 mm
4
0.03 mm
Fanuc M-3iA/12H
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
1350 mm
3
0.1 mm
Fanuc SR-3iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
3 kg
400 mm
4
0.01 mm
Fanuc SR-3iA/С
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
3 kg
400 mm
4
0.01 mm
Fanuc SR-3iA/U
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
3 kg
350 mm
4
0.01 mm
Fanuc SR-6iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
6 kg
650 mm
4
0.01 mm
Fanuc SR-6iA/C
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
6 kg
650 mm
4
0.01 mm
Fanuc SR-12iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
12 kg
900 mm
4
0.01 mm
Fanuc SR-20iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
20 kg
1100 mm
4
0.02 mm
Fanuc PM 200iA/5L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
5 kg
892 mm
6
0.03 mm
Fanuc P-40iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
5 kg
1300 mm
6
0.03 mm
Fanuc P-50iB/10L
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
10 kg
1800 mm
6
0.2 mm
Fanuc P-250iB/15
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
15 kg
2800 mm
6
0.2 mm
Fanuc P-1000iA
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
15 kg
2848 mm
7
0.5 mm
Fanuc P-350iA/45
Load capacity:
Robot Reach:
Number of Axes:
Accuracy:
45 kg
2606 mm
6
0.1 mm
